Explosion-proof Wire Rope Electric Hoist

  • Capacity:MAX 32t
  • Lifting height:MAX 30m
  • Working class:M4
  • Ambient Temperature:-25~40℃

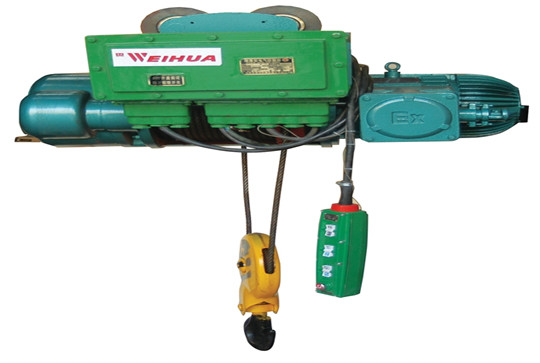

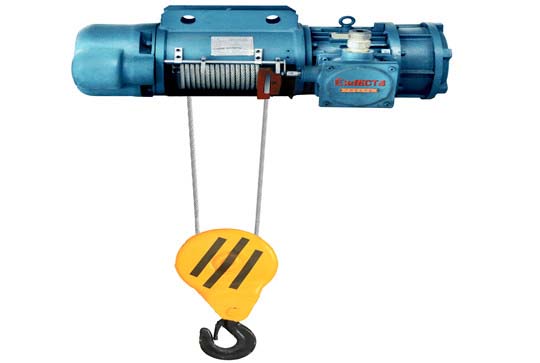

BCD BMD Explosion proof wire rope electric hoist it´s small-sized lifting equipment, which can be mounted on single beam bridge crane, gantry crane and jib cranes. With slight modification, it could also be used as a winch. The explosion proof class is ExDIIBT4 and ExDIICT4, it is mainly used in dangerous places where explosive gas mixture exists. Their structure and technical parameters are same as CD1 MD1 electric hoist
BMD model electric hoist provides two speeds: normal speed and low speed, while BCD model wire rope electric hoist has only one normal speed, which can satisfy normal application.
When BMD model electric hoist is at a low speed, it can do precise unloading and loading, die assembly of sand box, maintenance of machine tools, etc, Thus, BMD model electric hoist is more widely used than BCD model.
BCD BMD Explosion proof wire rope electric hoist applies to such an environment as the temperature is between 20℃ below zero and 40℃ above zero, the wetness is no higher than 85%, the elevation is below 1000m. The applicable power source is 3ph, 50 Hz or 60 Hz, 380 v~660v.
